Light Reflective Film REF-WHITE™


Improve backlight brightness with high reflectance

REF-WHITE™ is a liquid crystal display (LCD) backlighting reflective film. By attaching it to the back surface of the light guide plate, It minimizes light loss from the light source and achieves high brightness with limited power consumption. small It also has good optical properties as a backlight for thin color LCDs It is ideal for improving the brightness of the backlight unit.

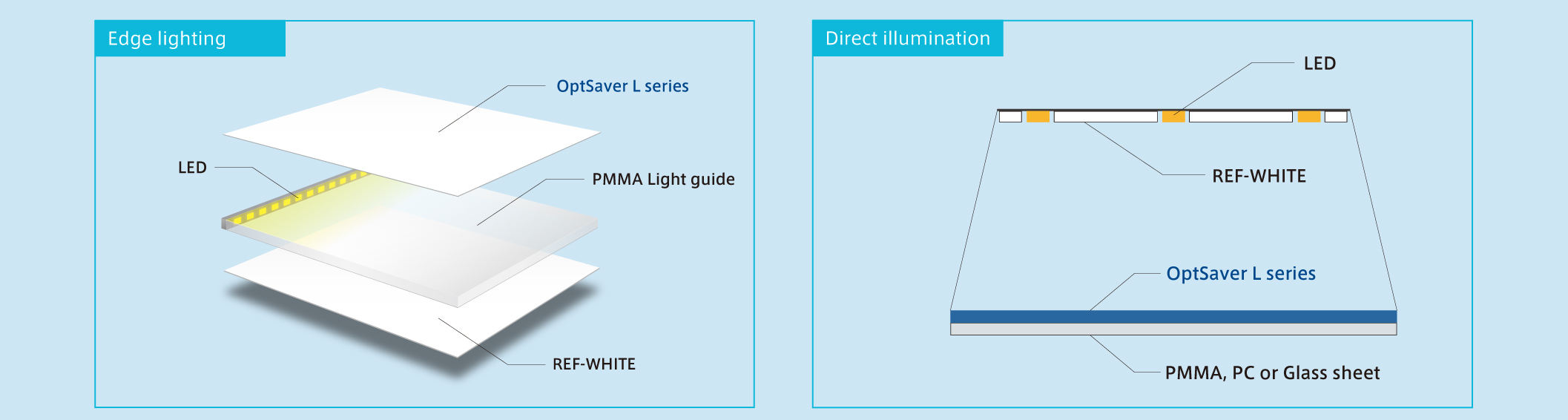

Reflective film attached to the back of the light guide plate, Use it as a reflector for lamps attached to the back of the light source Additionally, the lighting film 'OptSaver™' By combining with the series, You can control the brightness increase and the color change with the angle. Please choose according to your application.

Features of REF-WHITE™

Improved backlight brightness and illuminance distribution

Minimizes light loss from the light source and maximizes specular reflection effect with a white substrate

Applications

Structure

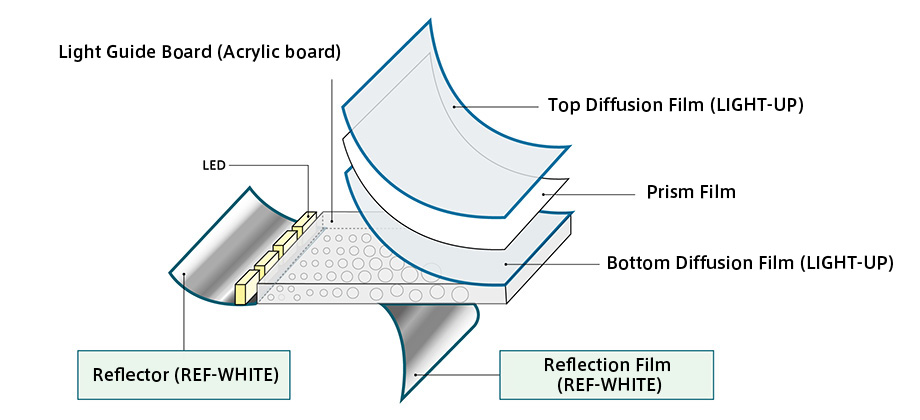

Edge light type structure diagram


REF-WHITE™ is an ideal partner for light-up materials as it is a highly reflective PET product that increases the efficiency of your lighting system.

Lineup

Product Type

grade Thickness (total thickness) 450nm
(Spectral Reflectance)		 550nm
(Spectral Reflectance)		 650nm
(Spectral Reflectance)
RW125 125μm 94.0% 93.0% 92.0%

※ Tolerance: ±3%

* The listed values are actual measurements and are not guaranteed values.

REF-WHITE™ is a highly reflective PET product that enhances the efficiency of lighting systems, and is a lighting film OptSaver™It can be used in combination with the " series.
