Black light-shielding film C AR BONFEATHER™ ( C AR BONFEATHER™ ™)
Light-blocking black film developed by combining unique KIMOTO technologies
Named "CARBONFEATHER™" for its feather-like lightness and remarkable thinness.
This is KIMOTO's original film, precisely coated onto various types of film with a solution containing carbon black, offering both high light-shielding and antistatic properties. For over 30 years, it has been used as a light-shielding film for camera lenses and other optical devices. It also excels in heat resistance, dimensional stability, and mechanical properties, earning high reliability.
With a range of functional features, it can be utilized in various types to suit your specific needs.
Features of CARBONFEATHER™
Applications
-
Smartphone
digital cameraLens unit light blocking material
-
Laptop
tabletLens unit light blocking material
-
digital camera
Video cameraZoom lens aperture blades
-
Surveillance cameras
Lens unit light blocking material
-
In-vehicle cameras
Aperture light blocking member
-
Drone
Lens light blocking material
-
Action camera
Aperture light blocking member
-
Other optical equipment
(microscopes, endoscopes, etc.)Lens light blocking material

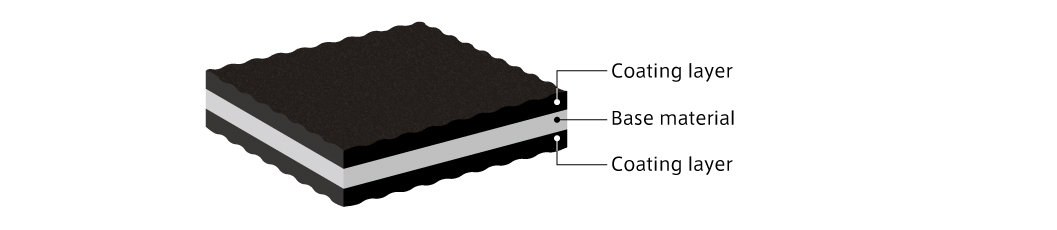

Basic structure/base material
Lineup
Standard Type
| Type | Product Name | Thickness (Tolerance) ［ μm ］ |
Light blocking property (Reference value) |
Gloss 60° (Reference value) ［ % ］ |
Surface resistance value [ Ω / ◻︎] |
Recommended uses |
|---|---|---|---|---|---|---|
| X1 | ||||||
| 12X1B22 | 22.0 （±1.0） |
4.5 | 3.0 | 10⁴ | digital camera Video camera |
|
| 12X1B30 | 30.0 （±1.0） |
6.0 | 3.0 | |||
| 25X1BSD | 33.0 （±1.0） |
4.0 | 4.0 | |||
| 25X1B | 41.0 （±1.0） |
6.0 | 3.0 | |||
| 38X1BSD | 48.0 （±2.0） |
4.5 | 4.0 | |||
| 38X1B | 56.0 （±5.0） |
6.0 | 3.0 | |||
| 50X1B | 68.0 （±5.0） |
6.0 | 3.0 | |||
| 188X1B | 210.0 （±10.0） |
6.0 | 3.0 | |||
| X2 | ||||||
| 50X2B | 80.0 （±5.0） |
6.0 | 2.0 | 10⁴ | digital camera Video camera |
|
| 75X2B | 105.0 （±5.0） |
6.0 | 2.0 | |||
| 100X2B | 130.0 （±6.0） |
6.0 | 2.0 | |||
| X6 | ||||||
| 6X6B16 | 16.0 （±1.0） |
6.0 | 3.0 | 10⁴ | Microlenses | |
| 6X6B24 | 24.0 （±1.0） |
6.0 | 3.0 | |||
| 12X6B22 | 22.0 （±1.0） |
5.5 | 3.0 | |||
| 12X6B30 | 30.0 （±1.0） |
6.0 | 3.0 | |||
| 25X6BST | 33.0 （±1.0） |
6.0 | 3.0 | |||
| 25X6BT7 | 37.0 （±1.0） |
6.0 | 3.0 | |||
| 25X6B | 41.0 （±1.0） |
6.0 | 3.0 |
Thin film type
| Type | Product Name | Thickness (Tolerance) ［ μm ］ |
Light blocking property (Reference value) |
Gloss 60° (Reference value) ［ % ］ |
Surface resistance value [ Ω / ◻︎ ] |
Recommended uses |
|---|---|---|---|---|---|---|
| X5 | ||||||
| 6X5BT | 12.0 （±2.0） |
5.35≦ | 3.5≧ | 10⁴ | Microlenses | |
| 12X5BT | 19.0 （±2.0） |
5.35≦ | 3.5≧ |
Low reflection type
| Type | Product Name | Thickness (Tolerance) ［ μm ］ |
Light blocking property (Reference value) |
Gloss 60° (Reference value) ［ % ］ |
Surface resistance value [ Ω / ◻︎ ] |
Recommended uses |
|---|---|---|---|---|---|---|
| X4 | ||||||
| 6X4LGB | 18.0 （±1.0） |
5.45≦ | 0.7≧ | 10⁴ | Microlenses | |
| 12X4LGB | 24.0 （±1.0） |
5.45≦ | 0.7≧ | |||
| 25X4LGB | 37.0 （±1.0） |
5.85≦ | 0.7≧ | |||
| 38X4LGB | 49.0 （±2.5） |
5.85≦ | 0.7≧ |
Heat-resistant type
| Type | Product Name | Thickness （ Tolerance) ［ μm ］ |
Light blocking property (Reference value) |
Shiny 60° ( three Thoughts value ) ［ % ］ |
Surface resistance value [ Ω / ◻︎ ] |
Recommended uses |
|---|---|---|---|---|---|---|
| HR | Separately, Please contact us here . (Opens in a new window) | |||||
| RX | ||||||
※ Measurement methods vary depending on the type. Please contact us for details.
Blacker, thinner—pursuing technology that blocks light.
"CARBONFEATHER™" was commercialized in 1989 for use in camera aperture blades. At that time, metal shutter blades were used, but with the advent of digital cameras after 2000 and the push for lighter components, metal blades were replaced by film, and "CARBONFEATHER™" began to be used.
Subsequently, the widespread adoption of cameras in mobile phones exceeded expectations, leading to increased demands for light-shielding and thinner films. Around 2010, the explosive growth of smartphones made their bodies even more compact and thin, and further improvements in camera image quality required even greater light-shielding and thinness.
"CARBONFEATHER™" has evolved through continuous research and development alongside advances in camera technology, achieving industry-leading thinness thanks to our proprietary coating expertise. Today, it is used in a wide range of applications, including security surveillance cameras, drones, advanced medical fields, and automotive uses.
