Molding Diffusion Film OptSaver™ PCL52

Next-generation light diffusion film that opens up a new world of light diffusion possibilities

"OptSaver™" is a film that controls the degree of light diffusion in combination with a light source.

Conventional products could only be used for flat designs, but the OptSaver™ PCL52 allows for free design shapes. It is environmentally friendly and reduces costs while emitting uniform, natural light and spreading light. The diffusion performance has also been upgraded. It can be used in various scenes, This is KIMOTO's newLight Diffusion Film.

OptSaver™ PCL52 Features

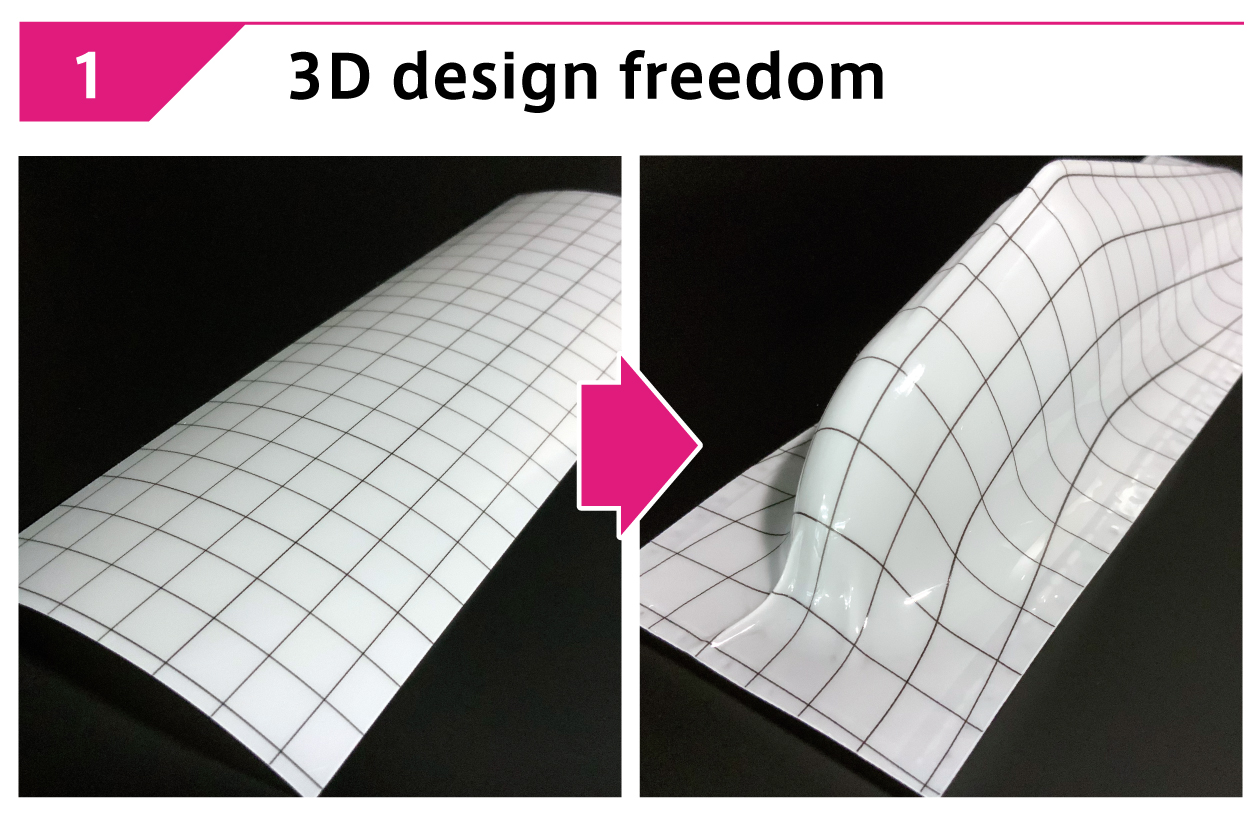

In addition to allowing for open designs, the film is resistant to heat during processing and is printable, which gives it even an even greater degree of freedom of use.
1 square 10mm
We do not perform printing or molding processes.

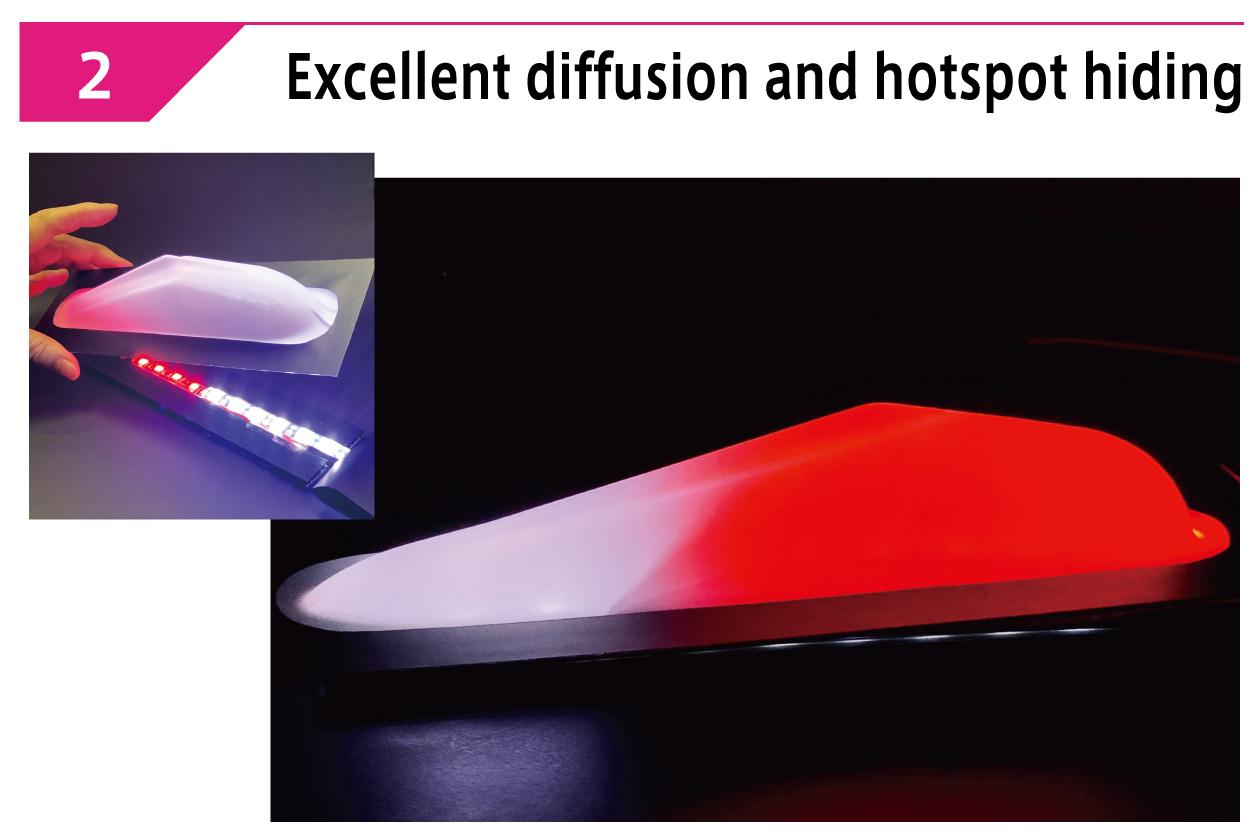

If you line up the LEDs and use "PCL52", the light source of the LED will be emitted evenly without being felt, creating a natural gradation.
*Contributes to reducing LED light sources.

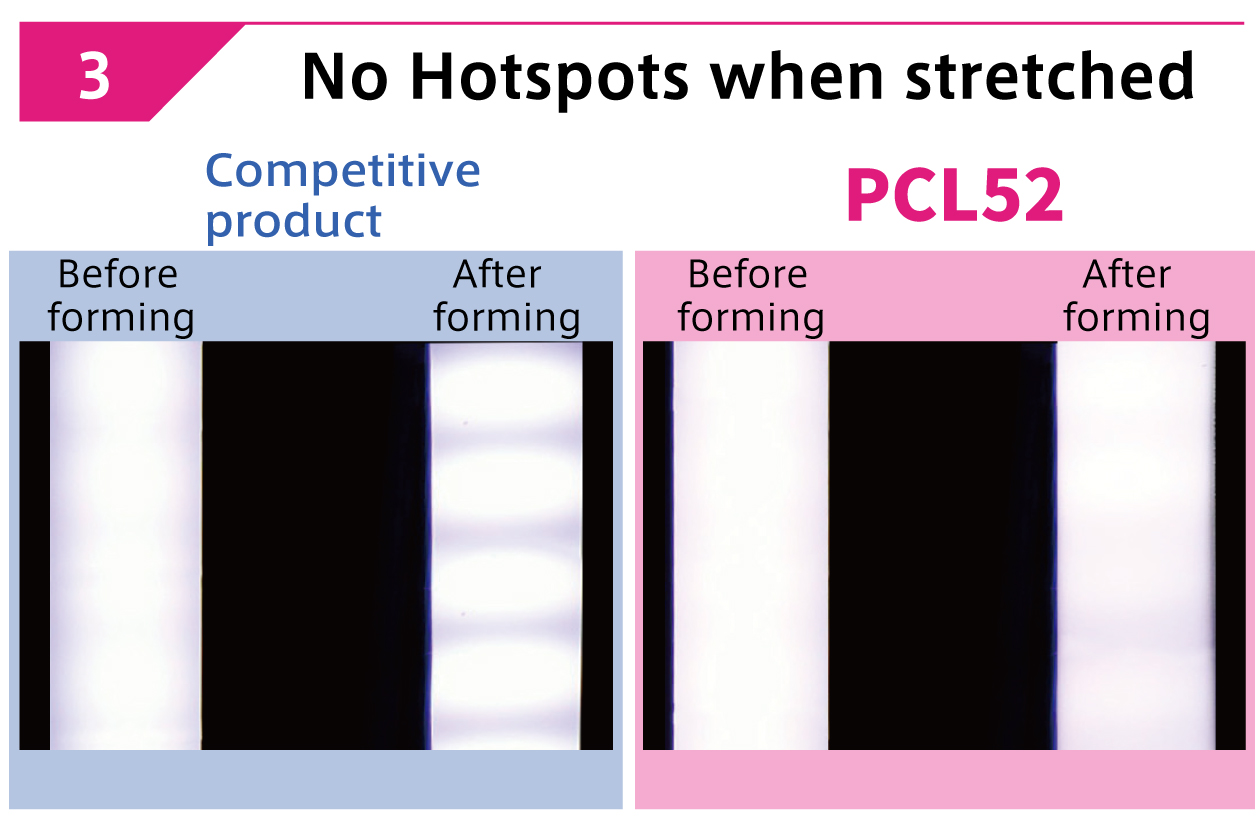

"PCL52" achieves the same light diffusivity as before processing even after the molding process (200% elongation).

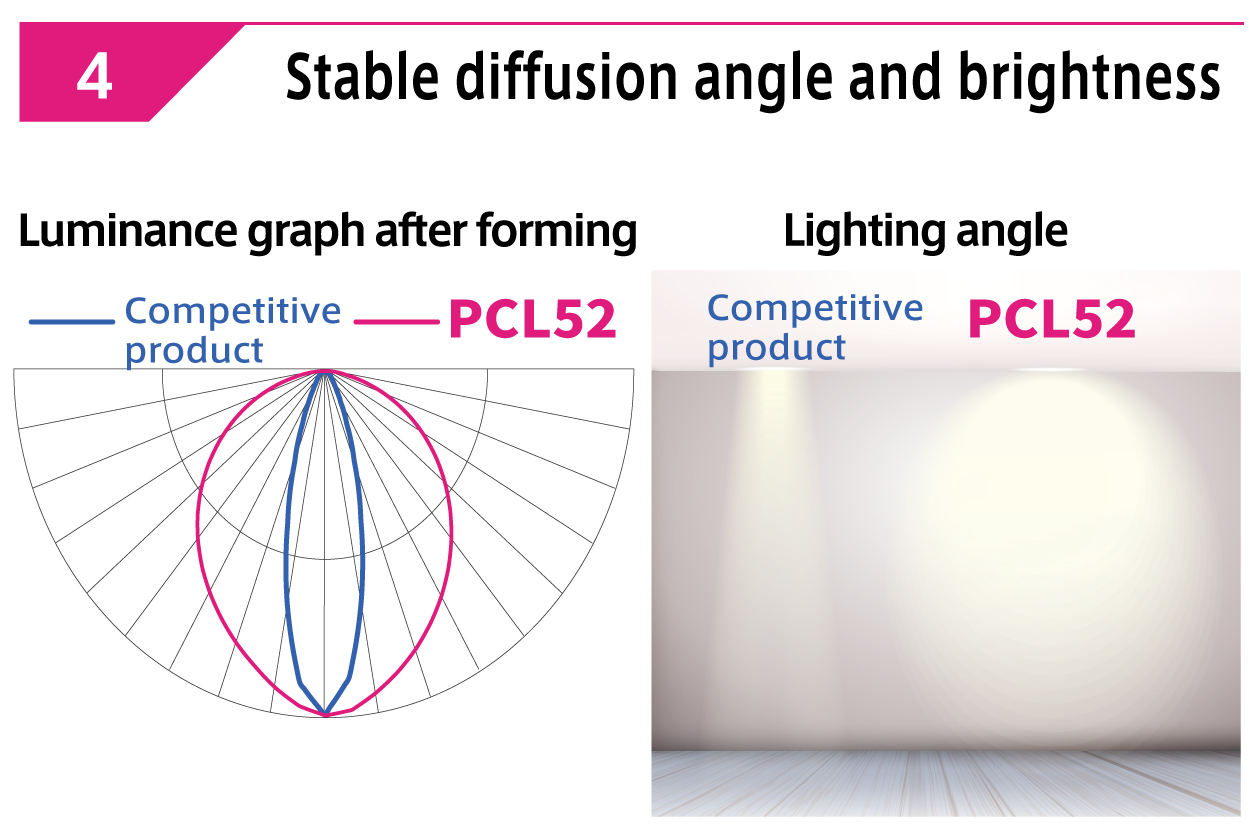

Even after molding, the LED lighting angle remains
kept broadly.

OptSaver™ PCL52 Product Introduction

“OptSaver™ PCL52 anatomy!”

Please see here as well.

Applications

For the design of car interiors and exteriors, as well as the control panels of home appliances and lighting during operation.

Automotive interiors and exteriors

Control panels of electrical appliances and lighting when in operation

car tail lamp

Lighting when household appliances are operating

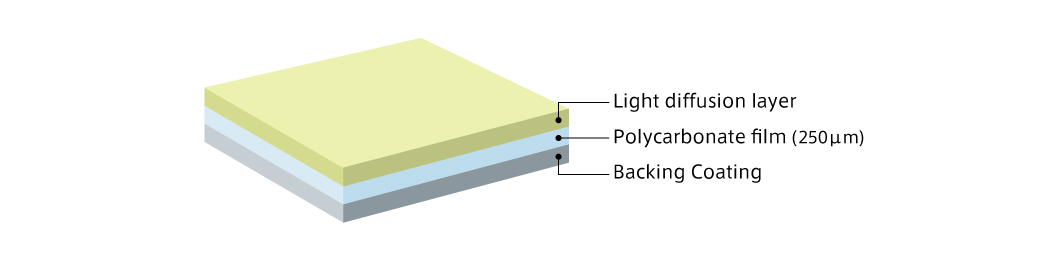

Structure

Lineup

Lineup, physical property data

Type	PCL52	Measuring method
Total light transmittance	71 %	JIS K 7361-1
HAZE	99 %	JIS K 7136
Elongation rate	200% End	KIMOTO Method
Half width at half maximum	52 °	KIMOTO Method
Flammability test	Passed	FMV SS302
