ceramic machining adhesive Prosave™ CB


Supports laser drilling with optimal adhesive performance for ceramic substrates

Firmly protects each process with an adhesive layer optimal for substrate protection,It can be removed again with little residual glue.

During laser drilling, Enables the formation of clean through-holes without leaving burrs on the surface, Conductive paper Also ideal as a carrier film for embedding paste.

Features of Prosave™ CB

Beautiful through-hole formation

Photo of laser processing on prepreg. By providing a protective film, it is possible to form clean through-holes without generating burrs on the surface.

Prosave CB When not in use
When using Prosave CB

Anti-static treatment prevents problems caused by static electricity

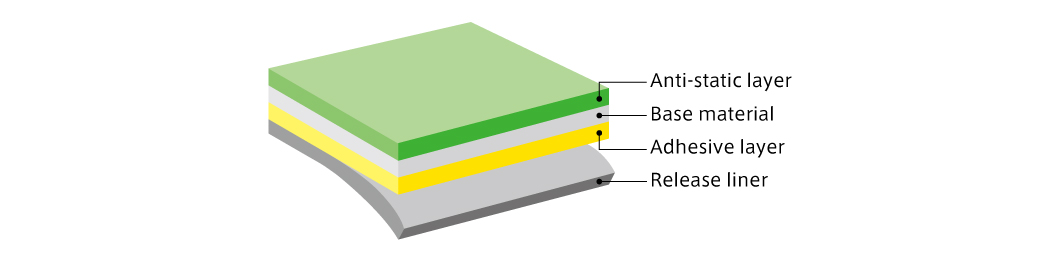

Structure


Applications

Protective film for laser drilling during the manufacturing of package substrates (ceramics, etc.)

Carrier film for embedding conductive paste into through-holes

Lineup

Product Type

grade type Characteristics Base material Separator
CB CBFS2 Minimizes burrs from drilling 25μm PET 25μm

Adhesive strength

Unit: N/25mm Adherent
PET SUS Glass
CBFS2 0.13 0.11 0.15
*The values listed are actual measured values and are not guaranteed.
