High Transparency Fine Adhesive Prosave™ EP


High cost performance, versatile low-adhesive film

Standard type of the Prosave series, Very little adhesive residue is left behind and it is easy to remove.Long-term stable viscosity Maintains adhesion.

One-sided adhesive with antistatic properties on the base material surface, Lineup includes double-sided adhesive type. Choose according to your application please.

Features of Prosave™ EP

Extremely low adhesive residue, easy to re-peel low-adhesive

Anti-static treatment prevents malfunctions caused by static electricity (LS, MS, HS type).

Adhesive layer on both sides (FT100 type)

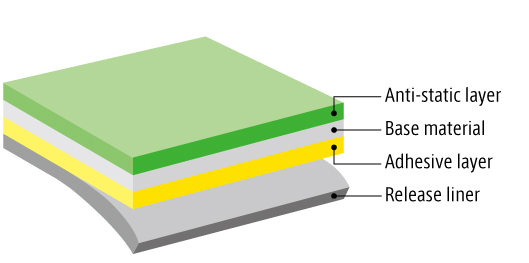

Structure

LS・MS・HS

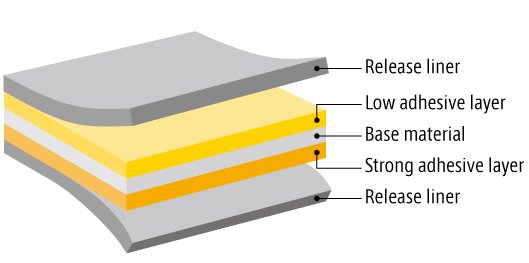

FT100

Applications

Mounting paper for optical film punching

Protection for various nameplates and surface materials during silk screen printing

Protection of rough surface materials

Carrier film for processing foam materials (such as urethane)

Protection during metal plate processing

Protection during silk printing

Carrier film and fixing film for manufacturing processes

As a protective film for other surface materials

Lineup

Product Type

grade type Characteristics Base material Separator
EP LS Ultra-light adhesion 50μm PET 25μm PET
MS Slightly adhesive 50μm PET
75μm PET		 25μm PET
HS Slightly adhesive 75μm PET 25μm PET
FT100 Double-sided adhesive
Weak adhesion / Strong adhesion		 25μm PET Slightly adhesive side: 25μm PET
Strong adhesive side: 50μm PET

Adhesive strength

Unit: N/25mm Adherent
PET SUS Glass
 LS 0.06 0.01 0.05
 MS 0.25 0.14 0.14
 HS 0.89 0.51 0.72
 FT100 Slightly adhesive 0.08 0.06 0.08
Strong adhesion 5.73 4.53 9.51
*The values listed are actual measured values and are not guaranteed.
※The adhesive strength for LS and MS is based on actual measurements using a 50μm thick substrate.
