Heat-Resistant Low-Tack Prosave™ RC
For heat-intensive processes
Ideal as a protective or reinforcing material during heat treatment processes. The adhesive strength remains stable during heating, with minimal residue after heating, making re-peeling easy.
Two types are available.
For short-term use under high temperatures, choose the THS type, For long-term use, choose the SHR type.
The SHR type prevents oligomer precipitation and maintains transparency after heating,
Features of Prosave™ RC
The heat-resistant adhesive layer makes it ideal as a protective or reinforcing material during heat treatment processes
Anti-static treatment prevents problems caused by static electricity
For short-term processes under high temperatures (THS type), and long-term processes (SHR type)
Prevents oligomer precipitation and maintains transparency after heating (SHR type)
Proven performance of heat-resistant PET film and adhesive layer in heat treatment processes at 150°C for 6 hours

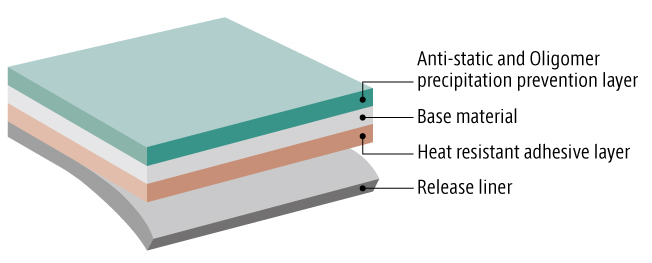

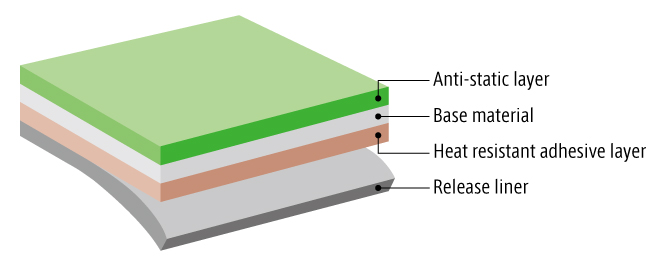

Structure
THS
SHR
Applications
Protection of hard-coated films
Backing film for conductive paste printing
Protection during silk printing
For copper foil carrier film
Protection for other heat-involved processes
Lineup
Product Type
| grade | type | Characteristics | Base material | Separator |
|---|---|---|---|---|
| RC | THS | Heat resistant | 25μm PET | 25μm PET |
| SHR | Heat resistant | 50μm PET | 25μm PET |
Adhesive strength
| Unit: N/25mm | Adherent | |||
|---|---|---|---|---|
| PET | SUS | Glass | ||
| THS | 0.07 | 0.04 | 0.06 | |
| SHR | 0.04 | 0.08 | 0.04 | |
| *The values listed are actual measured values and are not guaranteed. *Initial value before heating. |
||||
Adhesion after heating
| Unit: N/25mm | Adherent | |||
|---|---|---|---|---|
| PET | SUS | Glass | ||
| THS | 150℃ 30 minutes | 0.1 | 0.09 | 0.11 |
| SHR | 150℃ 6 hours | 0.33 | 2.58 | 0.3 |
| Even after overheating at 150°C, there is almost no adhesive residue or lifting from the adherend. (THS: up to 30 minutes, SHR: up to 6 hours) |
||||
