self-adsorbing adhesive Prosave™ SQ


Self-adsorbing type, easy to apply, excellent optical properties

The adhesive layer is a self-adsorbing type and can be easily applied cleanly. Because it is a silicone-based adhesive, it also has excellent chemical resistance.

It has a high total light transmittance and is ideal for protection during the manufacturing process of touch panel sensors, mobile LCDs, touch panel devices, etc.

Features of Prosave™ SQ

The adhesive layer is self-adsorbing and easy to adsorb.

Silicone-based adhesive provides excellent heat and chemical resistance

High total light transmittance, ideal as a protective film for optical products

Anti-static treatment prevents disturbances caused by static electricity ( SQ and SQ D3 type)

Adhesive layer on both sides ( SQ WB2 type)

Structure

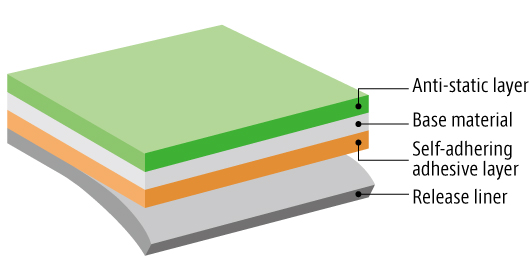

SQ/SQD3

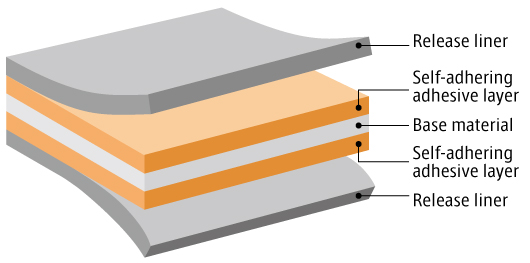

SQWB2

Applications

Protection during the manufacturing process of touch panel sensors

Protection of mobile LCDs, touch panel devices, etc.

Temporary fixation of fine parts

Lineup

Product Type

grade type Characteristics Base material Separator
SQ SQ silicone 50μm PET 25μm PET
SQD3 silicone 50μm PET 50μm PET
SQWB2 Double-sided silicone 100μm PET 25μm PET /50μm PET

Adhesive strength

Unit: N/25mm Adherent
PET SUS Glass acrylic
 SQ 0.02 0.02 0.01 0.01
 SQD3 0.006 0.007 0.008 0.006
 SQWB2 20μ adhesive 0.01 0.01 0.02 0.01
50μ adhesive
*The values listed are actual measured values and are not guaranteed.

Chemical resistance

  PET lamination immersion Single immersion
Prosave SQ Other company's products Prosave SQ Other company's products
5 minutes 1 hour 5 minutes 1 hour 5 minutes 1 hour 5 minutes 1 hour
10％ HCI ○ ○ ○ ○ ○ ○ ○ ○
5％ NaOH ○ ○ ○ ○ ○ ○ ○ ○
ethanol ○ ○ ○ ○ ○ ○ × ×
Ethyl acetate ○ ○ △ × ○ ○ × ×
Hexane ○ ○ ○ ○ ○ ○ ○ ○
MEK ○ ○ △ × ○ ○ × ×
toluene ○ △ × × ○ △ × ×
Benzine ○ ○ ○ ○ ○ ○ ○ ○
Tap water ○ ○ ○ ○ ○ ○ ○ ○

○…No erosion △…Erosion only at edges ×…Adhesive layer peeling occurs
* All results are arbitrary samples and do not guarantee results.
