UV-curable type easy peeling adhesive Prosave™ UV
UV-cured peel-off type
It adheres strongly to various substrates and can be easily peeled off without any adhesive residue after UV curing.
It is ideal for fixing substrates and parts, and for supporting work during processing.
Features of Prosave™ UV
Strong adhesion to various substrates
Cures after UV irradiation and can be easily peeled off without any adhesive residue

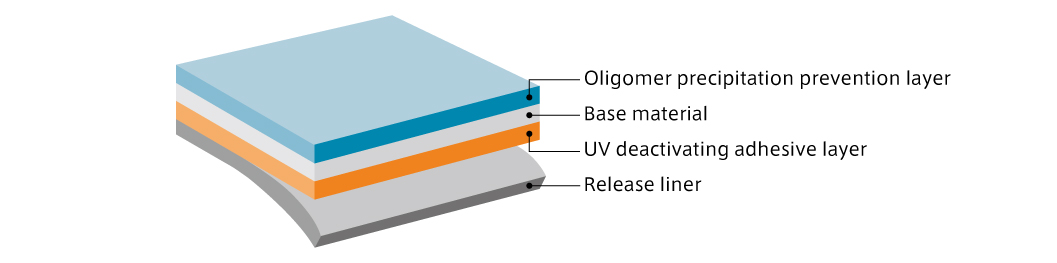

Structure
Applications
Support film for fixing ceramic capacitors and substrates
For processing package boards and LED boards
For processing glass parts
For use as a carrier during metal etching
Lineup
Product Type
| grade | type | Characteristics | Base material | Separator |
|---|---|---|---|---|
| UV | UV3 | UVEasy peeling | 100μm PET | 19μm |
Adhesive strength
| Unit: N/25mm | Adherent | |
|---|---|---|
| PET | ||
| UV3 | Initial Adhesion | 14.8 |
| Adhesive Strength After UV Irradiation ※1 | < 0.1 | |
| ※1 UV cumulative light dose: 400 mJ/cm², Lamp used: High-pressure UV lamp, Center wavelength: 365 nm, Peel angle: 180-degree peel, Peel speed: 300 mm/min (according to JIS Z 0237), Peeled from adherend side * The listed values are actual measurements and are not guaranteed values. |
||
