Glasstect™(Glasstect™)CV Anti-fog film
Clear vision. Anti-shatter film that prevents glass fogging.
Glasstect™ (Glasstect™)CV is an anti-fog type window film that coats a polyester film with a special film using KIMOTO's proprietary technology to prevent fogging of glass due to steam and moisture. It is transparent and has anti-glass shatterproof performance, and can be attached to food cases for stores, observation rooms, monitoring equipment, etc., to suppress fogging and maintain a comfortable field of view.
Applications
Food cases, refrigerator doors
Bathroom mirror
Surveillance camera storage box
observation room
Characteristics
-
Anti-fog
Coating with a special film to prevent fogging and ensure a comfortable field of view
-
Shatter prevention
Preventing glass shards during disasters and ensuring the safety of the surroundings
Compliant with JIS A 5759 -
UV protection
Blocks 99% of UV rays from outdoors
Prevents sunburn and interior fading
Suppression -
Materials for railway vehicles
Combustion test - Non-combustibilityMinistry of Land, Infrastructure, Transport and Tourism takes measures against fires in passenger cars
Obtained nonflammability certification as stipulated as
Function/performance
KIMOTO Glasstect™CV does not fog up this much!
Glasstect™CV features KIMOTO's unique thin-film anti-fog layer, which provides clear, fog-free visibility when applied to glass or mirrors. The film is applied to glass, 60°C hot water is poured into a container with the anti-fog surface facing downward, and the degree of fogging is observed over a set period. It does not fog even after repeating 10 minutes of 60°C steam ⇔ 10 minutes at room temperature five or more times (in-house method).
Compliant with JIS standards, it delivers peace of mind and safety with its excellent shatter-resistant performance.
During major disasters such as earthquakes and typhoons, not only building collapses but also the scattering of glass fragments due to strong impacts can significantly delay evacuation from the affected areas. Shatterproof film reduces secondary damage caused by dangerous glass fragments.
It meets the Japanese Industrial Standards (JIS A5759’s 'Shotback Test' and 'Interlayer Displacement Test'), preventing glass shattering even in unexpected circumstances and ensuring the safety of its surroundings.
About disclaimer
If applied in non-standard environments (such as high temperature, high humidity, or places exposed to water), unexpected malfunctions may occur, or the durability of the film may significantly decrease.

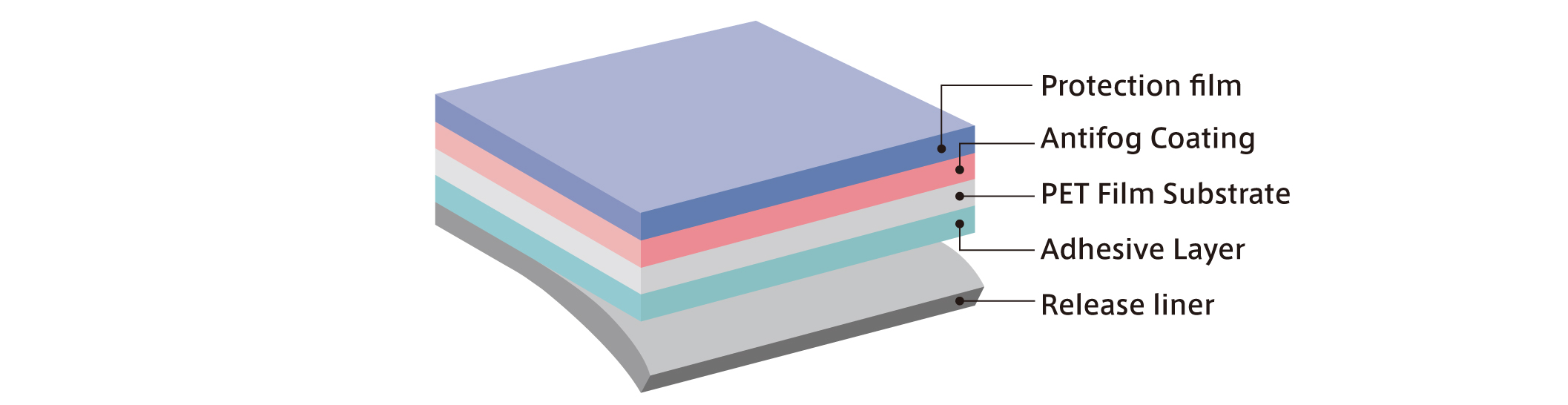

Structure
Lineup
Lineup, physical properties
| PET thickness | roll width | roll length | solar radiation Transmittance |
solar radiation reflectance |
solar radiation Absorption rate |
visible light Transmittance |
visible light reflectance |
UV rays Transmittance |
|---|---|---|---|---|---|---|---|---|
| 50 µｍ | 960 mm | 20 m | 81.4％ | 7.5％ | 11.1％ | 89.7％ | 8.1％ | <1 |
catalog
To request a catalogue Here from (Opens in a new window)
